| Features - The voice channel bank of FXS/FXO (up to 30 ports)
- Supported with Asterisk IP PBX
- Connection through E1 or Ethernet ports
- Point to point mode
- Compact design (1U case)
- Cost-effective solution
Resources

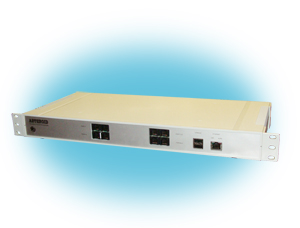

| DescriptionAsteroid is a voice channel bank, designed in 1U 19" case. It comprises four FXS/FXO modules with 8 ports each. Asteroid can be used for telephone line connection (up to 30 telephone subscribers) to a traditional PBX or IP PBX Asterisk/CallWeaver. The E1 port can be used for connecting the bank to the traditional PBX. Also, Asteroid can be connected to Asterisk/CallWeaver with an Ethernet port and TDMoE protocol. In both connections Loop Start signaling is provided for PBX. Order codes | Asteroid-0L4S-DC | 30 FXS ports, Ethernet port, -36..-72V DC | | Asteroid-4L0S-DC | 30 FXO ports, Ethernet port, -36..-72V DC | | Asteroid-1L3S-DC | 8 FXO ports, 22 FXS ports, Ethernet port, -36..-72V DC | | Asteroid-0L4S-AC | 30 FXS ports, Ethernet port, 220 V AC | | Asteroid-4L0S-AC | 30 FXO ports, Ethernet port, 220 V AC | | Asteroid-1L3S-AC | 8 FXO ports, 22 FXS ports, Ethernet port, 220 V AC | | Asteroid-0L4S-DC-E1 | 30 FXS ports, Ethernet port, -36..-72V DC, E1 port | | Asteroid-4L0S-DC-E1 | 30 FXO ports, Ethernet port, -36..-72V DC, E1 port | | Asteroid-1L3S-DC-E1 | 8 FXO ports, 22 FXS ports, Ethernet port, -36..-72V DC, E1 port | | Asteroid-0L4S-AC-E1 | 30 FXS ports, Ethernet port, 220 V AC, E1 port | | Asteroid-4L0S-AC-E1 | 30 FXO ports, Ethernet port, 220 V AC, E1 port | | Asteroid-1L3S-AC-E1 | 8 FXO ports, 22 FXS ports, Ethernet port, 220 V AC, E1 port | Accessories | IC-Asteroid-FXS1 | The cable with a jack for FXS module 1m lenght. | | IC-Asteroid-FXO1 | The cable with a jack for FXO module 1m lenght. | | IC-Asteroid-FXS2 | The cable with a jack for FXS module 2m lenght. | | IC-Asteroid-FXO2 | The cable with a jack for FXO module 2m lenght. | | IC-Asteroid-FXS3 | The cable with a jack for FXS module 3m lenght. | | IC-Asteroid-FXO3 | The cable with a jack for FXO module 3m lenght. | | IC-Asteroid-FXS4 | The cable with a jack for FXS module 4m lenght. | | IC-Asteroid-FXO4 | The cable with a jack for FXO module 4m lenght. | | JK-Asteroid-FXS | FXS jack. | | JK-Asteroid-FXO | FXO jack. |
The application examples

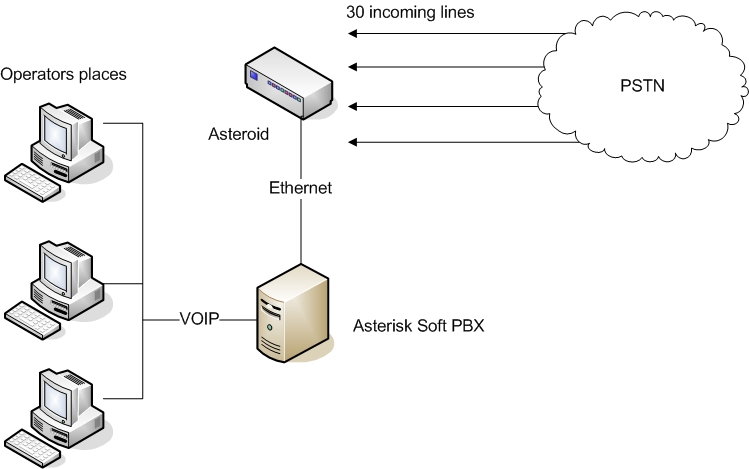

Call center

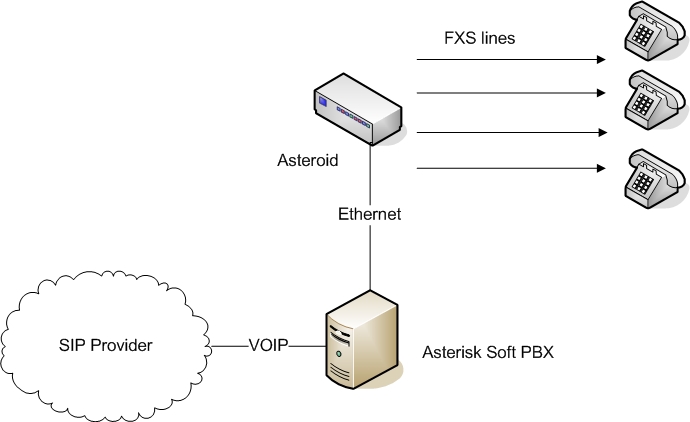

Corporative IP PBX
Voice provider application

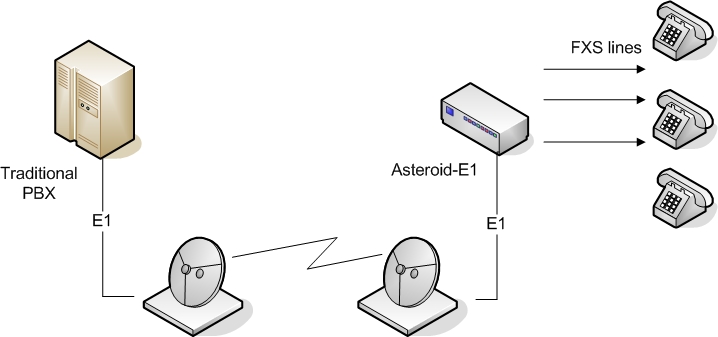

Point to point mode, no server needed
|
|
